Product Type

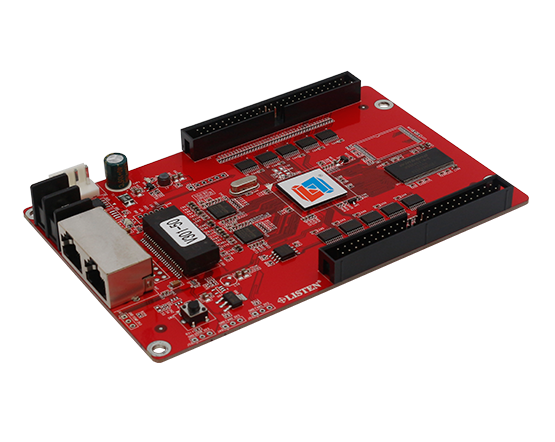

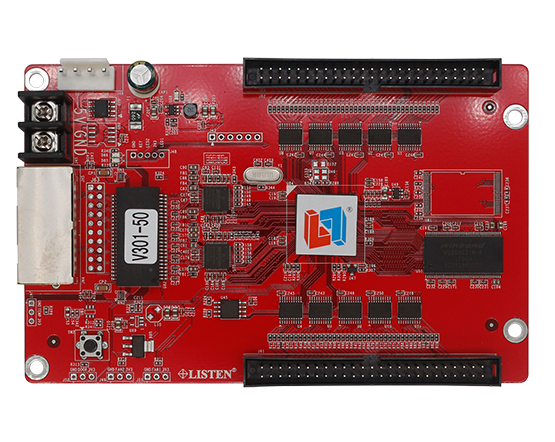

Full-color sync receiving card

Scan

Support 1/32, compatible with constant voltage/ constant current/ bistable latch/ high refresh chips

Control Range

256*128(4 scan)                                                                                                                                                                                                                                                                                         128*256(16 scan)

128*512(32 scan)

On-board Interface

2*50PIN

Grey Level

2~65536

Refresh Rate

Maximum 4KHz~16KHz

SI rate

1MHz~31.25MHz

Data

20 full-color signal

Cascade cards

255

Brightness Loss

＜10%

Other attributes

One key to switch, power source protection

Partner Product

LS-V9、LS-V9(BOX)

Working Temperature

-40℃- 85℃
